UGREEN Triple Display USB-C Hub, 8-in-1, 4K HDMI, 10Gbps
UGREEN Triple Display USB-C Hub, 8-in-1, 4K HDMI, 10Gbps

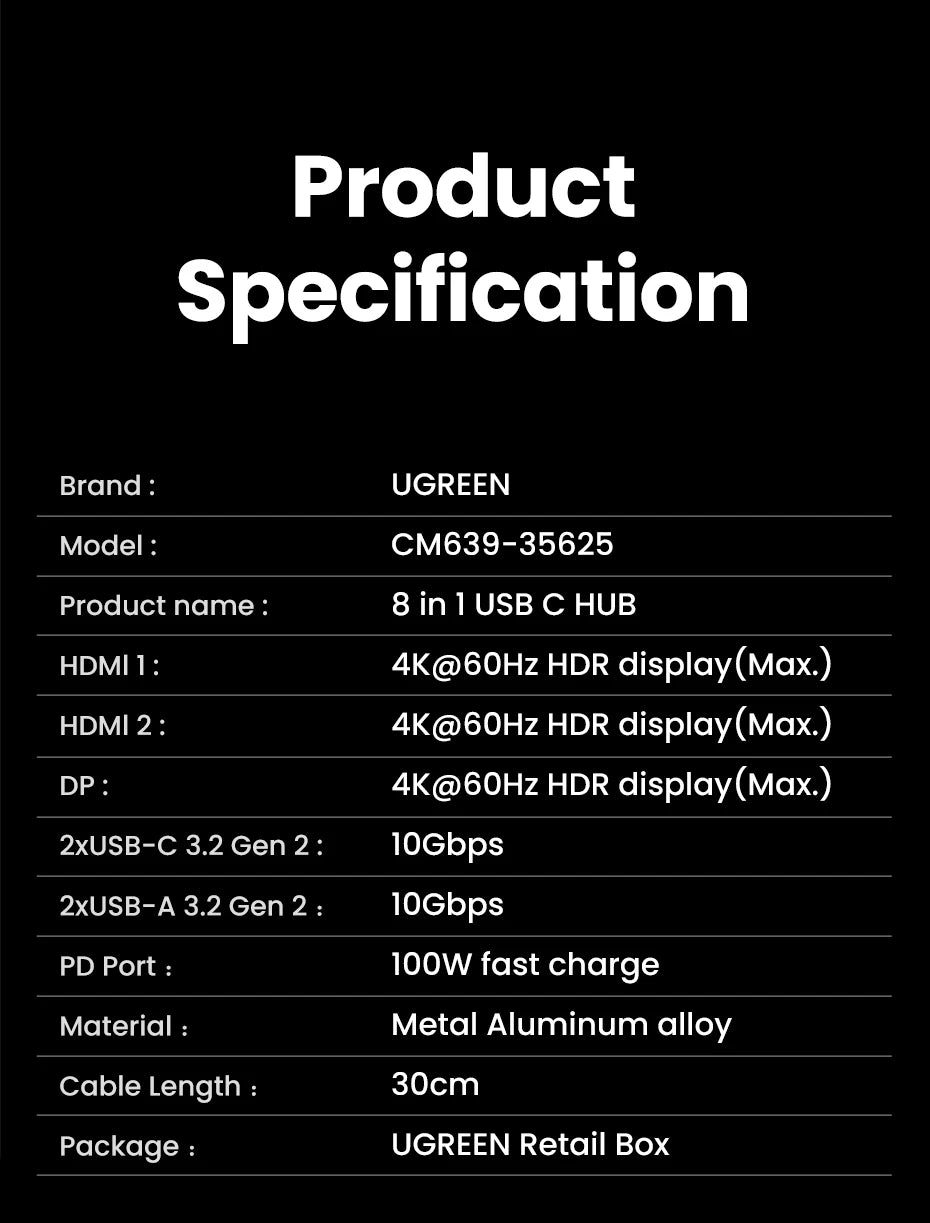

SPECIFICATIONS
1xDisplayPort Female Port: Used to connect display devices such as TVs, monitors, and projectors. Compliant with the DisplayPort 1.2 (DP 1.2) standard and supports HDCP 1.4 / 2.2 / 2.3 and HDR. CEC and ARC are not supported. Supports resolutions up to 3840x2160@60Hz, and is backward compatible with lower resolutions and refresh rates, including 2560x1440@144/120/60Hz and 1920x1080@240/144/120/60Hz.
2xHDMI Female Ports: HDMI Type-A ports for connecting display devices such as TVs, monitors, and projectors. Compliant with the HDMI 2.0 standard and support HDCP 1.4 / 2.2 / 2.3 and HDR. CEC and ARC are not supported. Support video output up to 4K@60Hz, 4:4:4 / RGB, and are backward compatible with lower resolutions and refresh rates, including 2560x1440@144/120/60Hz and 1920x1080@240/144/120/60Hz.
2xUSB-A Female Ports: Used to connect USB peripherals such as keyboards, mice, touchpads, speakers, webcams, USB flash drives, and external hard drives. Compliant with the USB 3.2 Gen 2 standard, with a theoretical maximum data transfer rate of 10Gbps, and backward compatible with USB 3.0 / USB 2.0 / USB 1.1. Supports BC 1.2 and hot swapping.
2xUSB-C Female Ports: Used to connect USB peripherals such as touchpads, speakers, webcams, USB flash drives, and external hard drives. Compliant with the USB 3.2 Gen 2 standard, with a theoretical maximum data transfer rate of 10Gbps, and backward compatible with USB 3.0 / USB 2.0 / USB 1.1. Supports BC 1.2 and hot swapping.
Brand Name: UGREEN
Certification: CE,FCC,RoHS
Choice: yes
Compatible Game Console: Steam Deck,ROG Alloy,Legion Go
Compatible PC Devices: Laptop
Compatible Systems: Windows,Linux,Chrome OS
Dolby Vision / Dolby Atmos: Supports Dolby Vision and Dolby Atmos.
Funtion: DP,USB-A,USB-C,Charging,HDMI-Compatible
High-concerned chemical: none
Input Port (1xUSB-C Female Port (PD Input)): Used to connect a PD power adapter to power the docking station and charge the host device. Supports reversible USB-C plug orientation. Compliant with the USB Power Delivery 3.0 (PD 3.0) standard and supports 20V / 15V / 9V / 5V voltage profiles. Backward compatible with PD 2.0. Supports up to 20V/5A input, with a maximum charging output of 85W to the laptop. Uses dynamic power reservation: Below 45W input: reserves 5W for the docking station; 45W-90W input: reserves 10W for the docking station; Above 90W input: reserves 15W for the docking station.
Input Port (1xUSB-C Male Connector): Used to connect to a host device, such as a laptop, tablet, or smartphone. Compliant with the USB 3.2 Gen 2 standard, with a theoretical maximum data transfer rate of 10Gbps, and backward compatible with USB 3.0 / USB 2.0 / USB 1.1. Supports the DisplayPort 1.4 (DP 1.4) protocol, HDCP 1.4 / 2.2 / 2.3, and HDR. CEC and ARC are not supported. The total video transmission bandwidth is 16.2Gbps.
Interface Type: USB Type-C
Material: aluminum,others,Plastic,Metal
Model Number: CM639
Origin: Mainland China
Package: Yes
Plug Type: None
Ports: 8,8
Product Name: USB HUB / USB C HUB / Docking Station
Standard: USB 3.2 Gen2
USB-C Extension Cable: Not Supported
Variable Refresh Rate (VRR): Supports VRR (Variable Refresh Rate), including NVIDIA G-SYNC and AMD FreeSync.

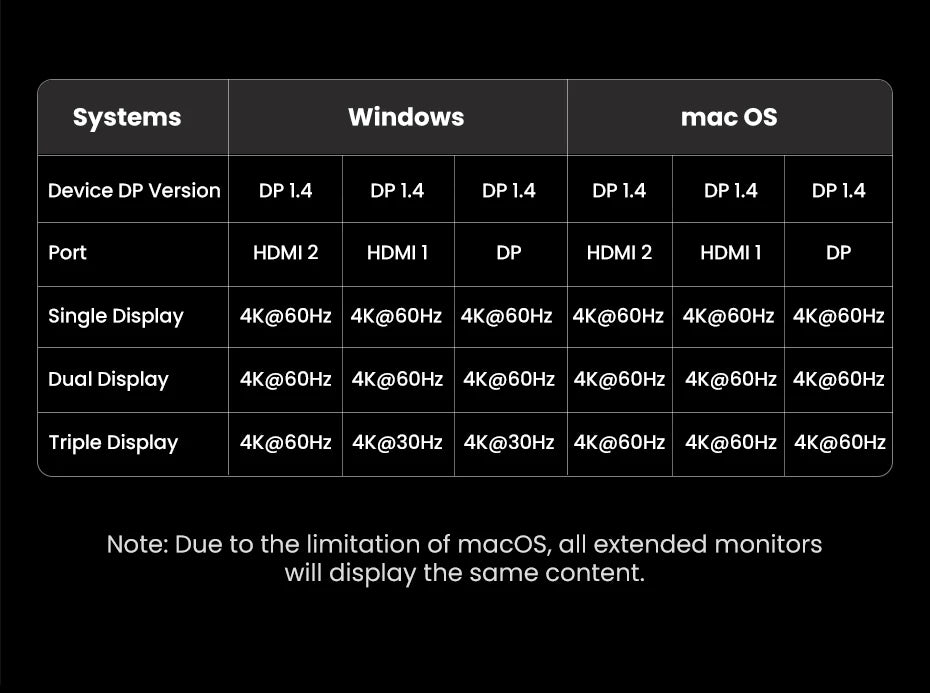

Windows Display Output Modes: Supports A+B+C+D Extended Mode - the laptop's built-in display and three external monitors can display four different screens simultaneously.

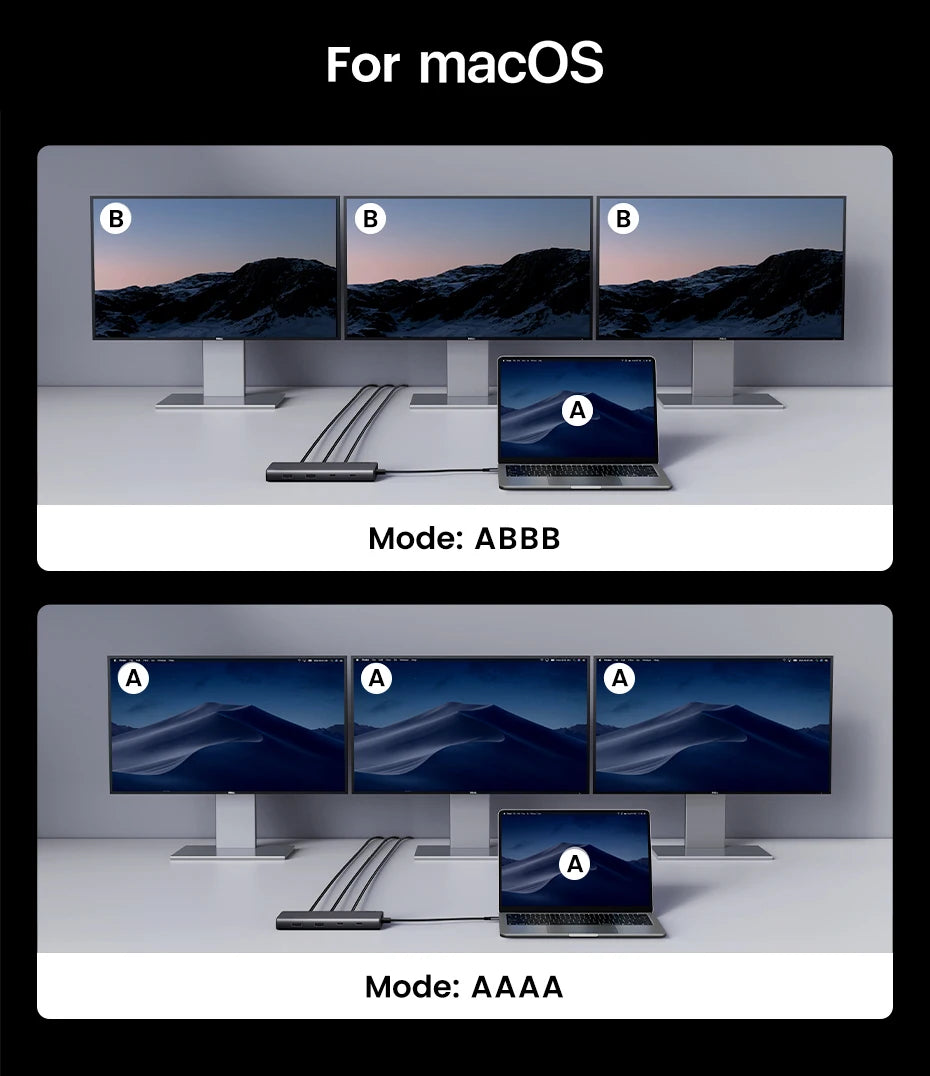

macOS Display Output Modes: Supports A+A+A+A / A+B+B+B Mirror Mode - when connected to three external monitors, the displays support full mirroring (A+A+A+A) or the built-in display showing content A while all three external monitors mirror the same content B (A+B+B+B).
"Ships within 2–3 business days. Estimated delivery: 10–20 days depending on location."
About this item:
1. 8 in 1 USB C Laptop Docking Station: UGREEN triple docking station equips with two 4K HDMI ports, a 4k DisplayPort, two 10 Gbps USB-C 3.2 Gen 2 ports, two 10 Gbps USB-A 3.2 Gen 2 ports, 100W Power Delivery
2. 4K Triple and Dual docking station: This USB C adapter laptop docking station enables dual or triple display setups, delivering 4k resolution for both configurations. Please note that only Windows systems support MST-Multi Stream Transport for triple display, while Mac systems are limited to SST-Single Stream Transport
3. High-Speed Data Transfer: Boasting a USB 3.2 port with a lightning-fast data transfer rate of 10Gbps, this expansion dock allows for quick and efficient transfers of files, movies, and photos. Note: the 10Gbps USB-C interface is designed for data transmission only and does not support video output or charging
4. Robust 100W Power Delivery: Our Type-C hub docking station offers up to 85W of USB-C pass-through charging via the PD port, ensuring your laptop stays fully charged while reserving 15W for seamless operation of other ports. Enjoy the convenience of high-power charging. Please note that the Type-C PD charging port is compatible only with PD-equipped devices

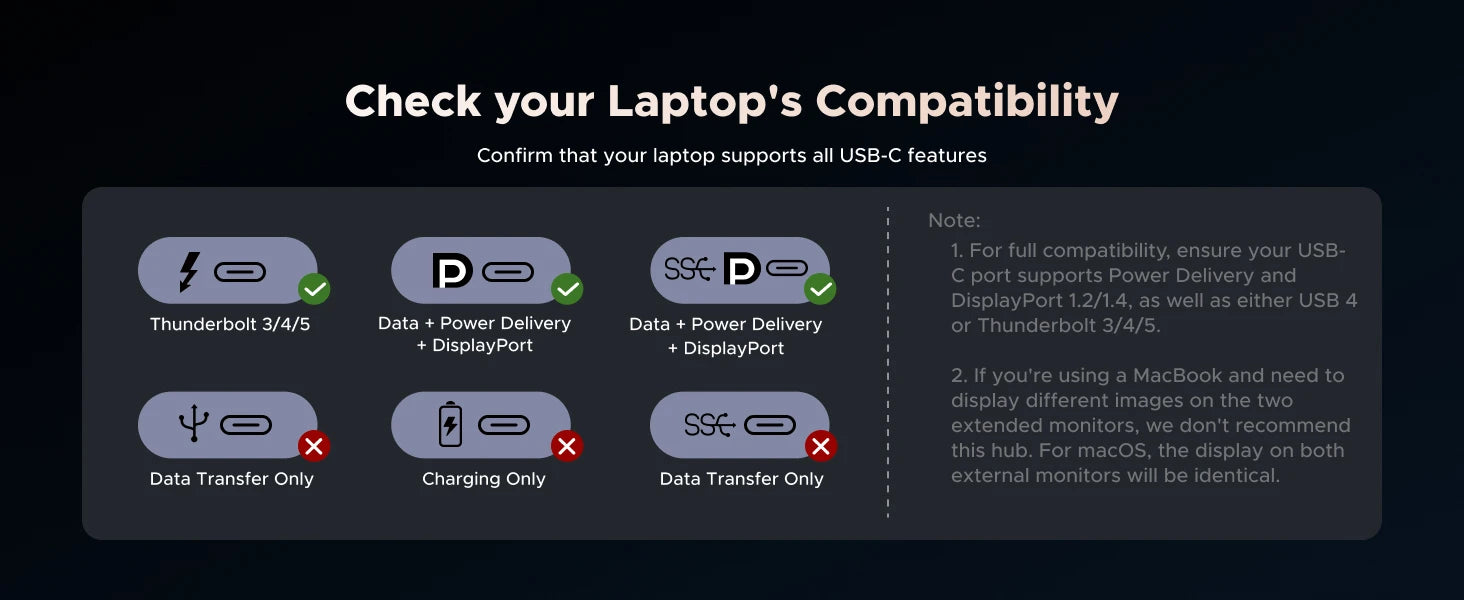

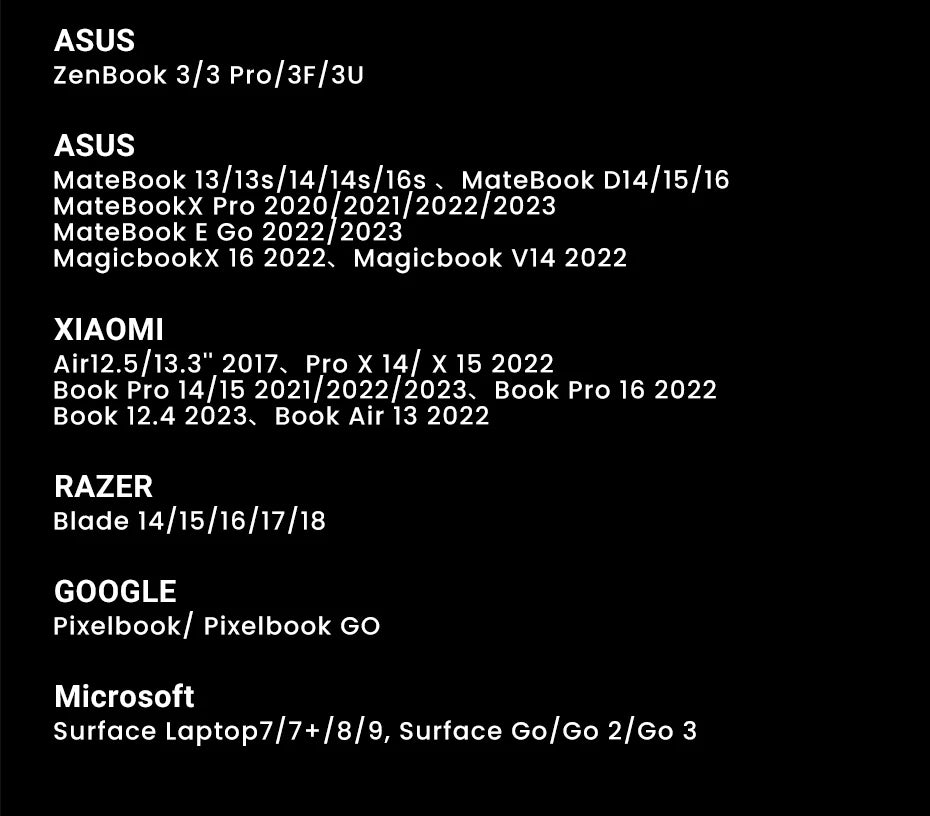

5. Broad Compatibility: The USB-C Hub Multiport Adapter is compatible with almost all USB-C devices, such as MacBook Pro, MacBook Air, iMac, ThinkPad X1, ZenBook, iPad Pro, Chromebook, Surface, etc. Note: 8-in-1 product doesn't compatible with Lenovo Series Tablet.

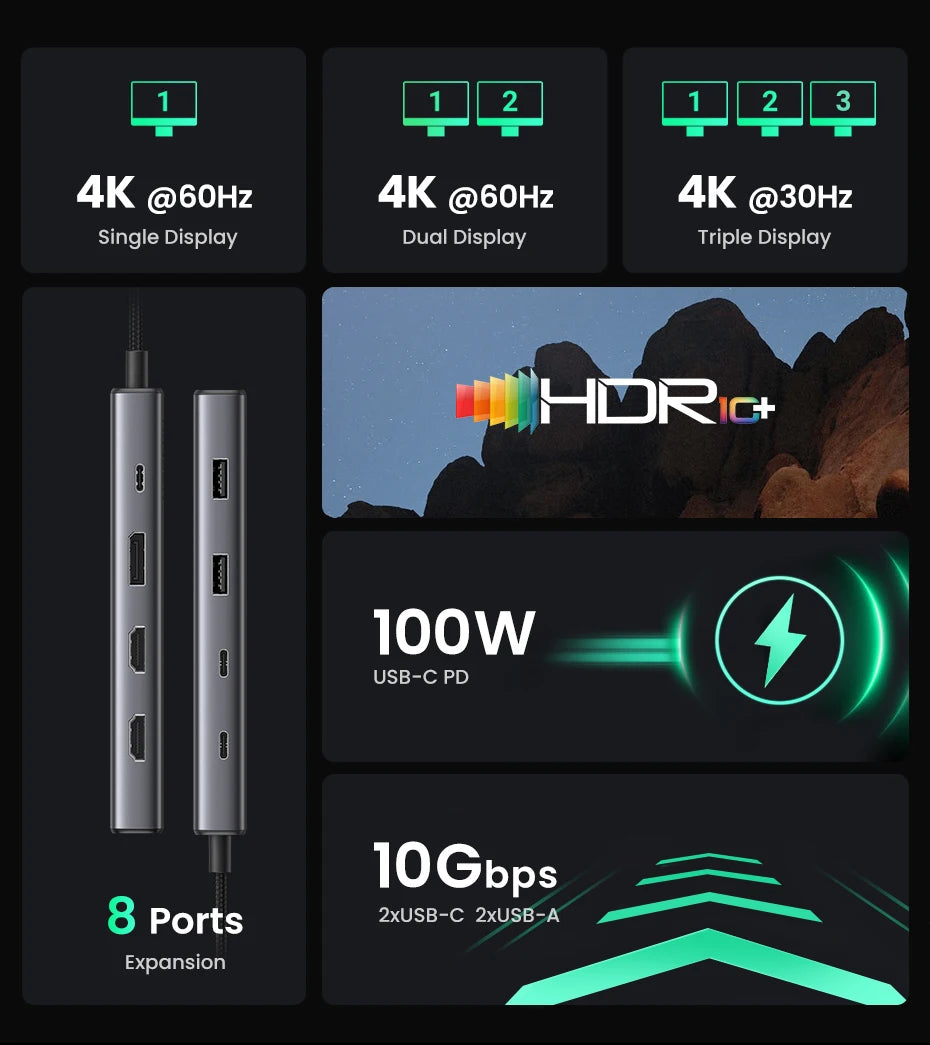

Triple Display - 2xHDMI+1xDP

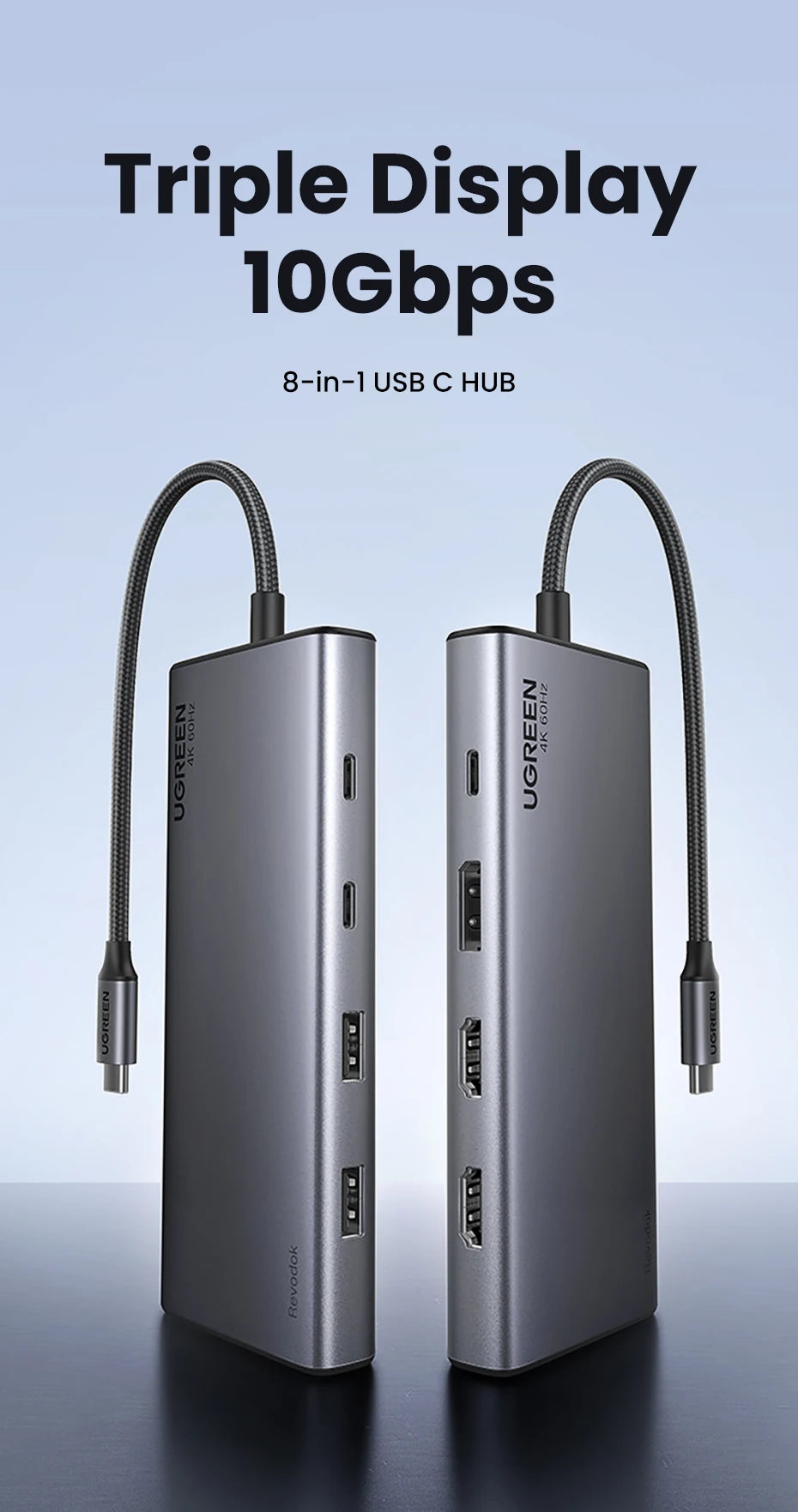

10Gbps 8-in-1 USB-C HUB

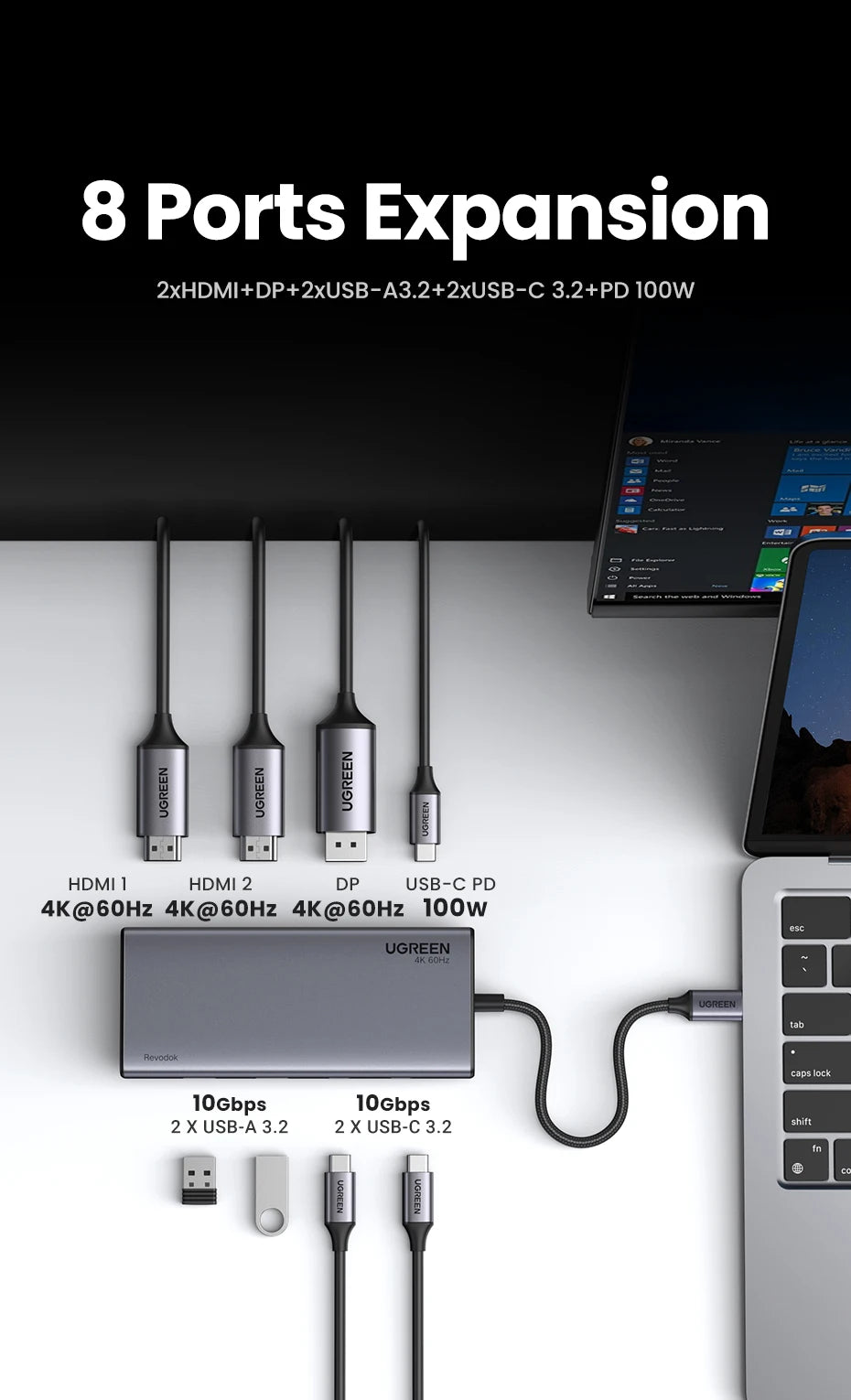

8 Ports Expansion

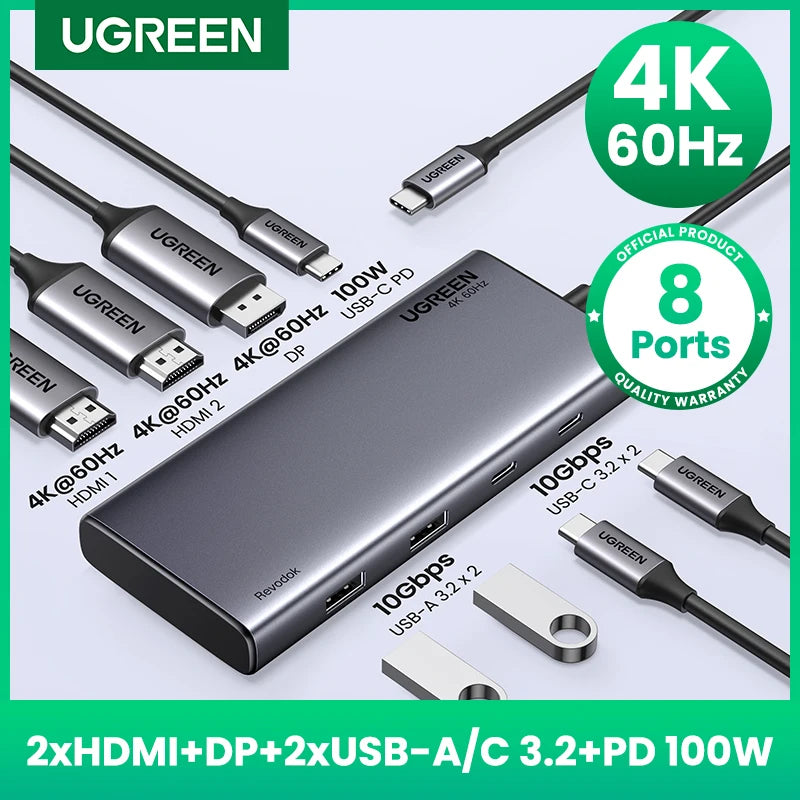

2xHDMI+DP+2xUSB-A3.2+2xUSB-C 3.2+PD 100W
Triple 4K@30Hz Display
Using two HDMl and DP at the same time support 4K@30Hz display

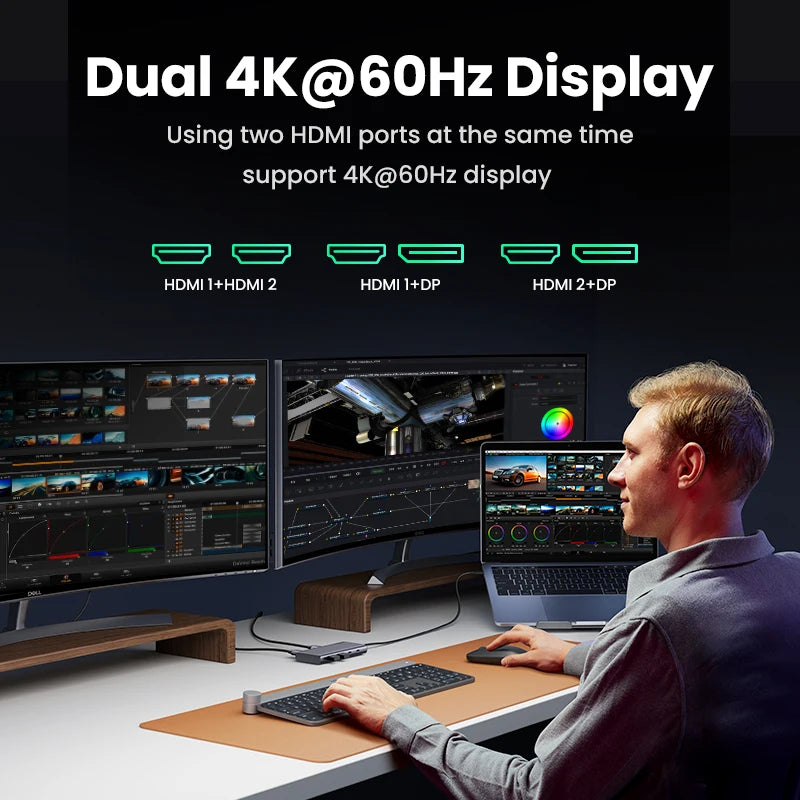

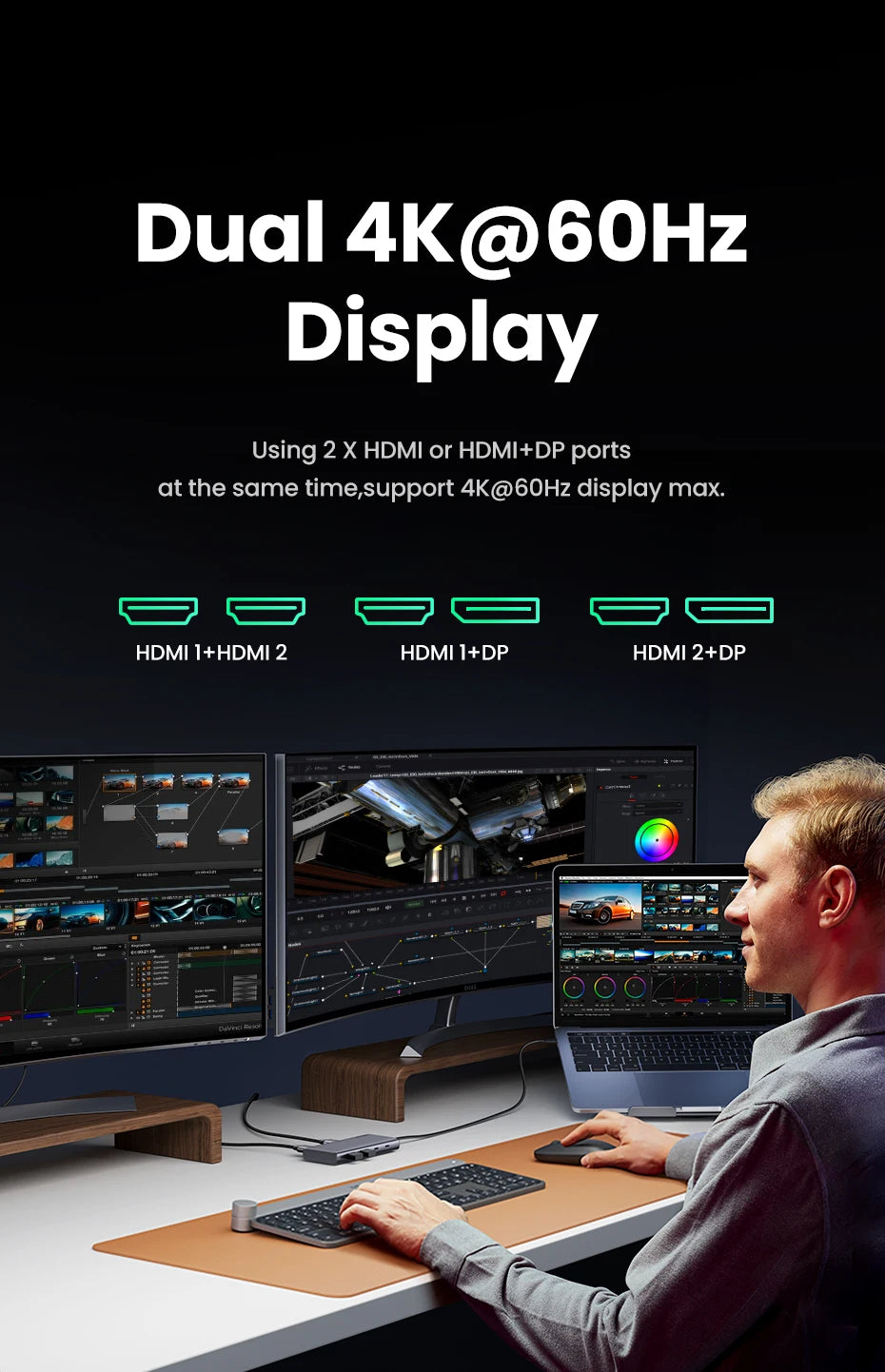

DuaI 4K@60Hz Display
Using 2 X HDMI or HDMI+DP ports simultaneously, support 4K@60Hz display max.

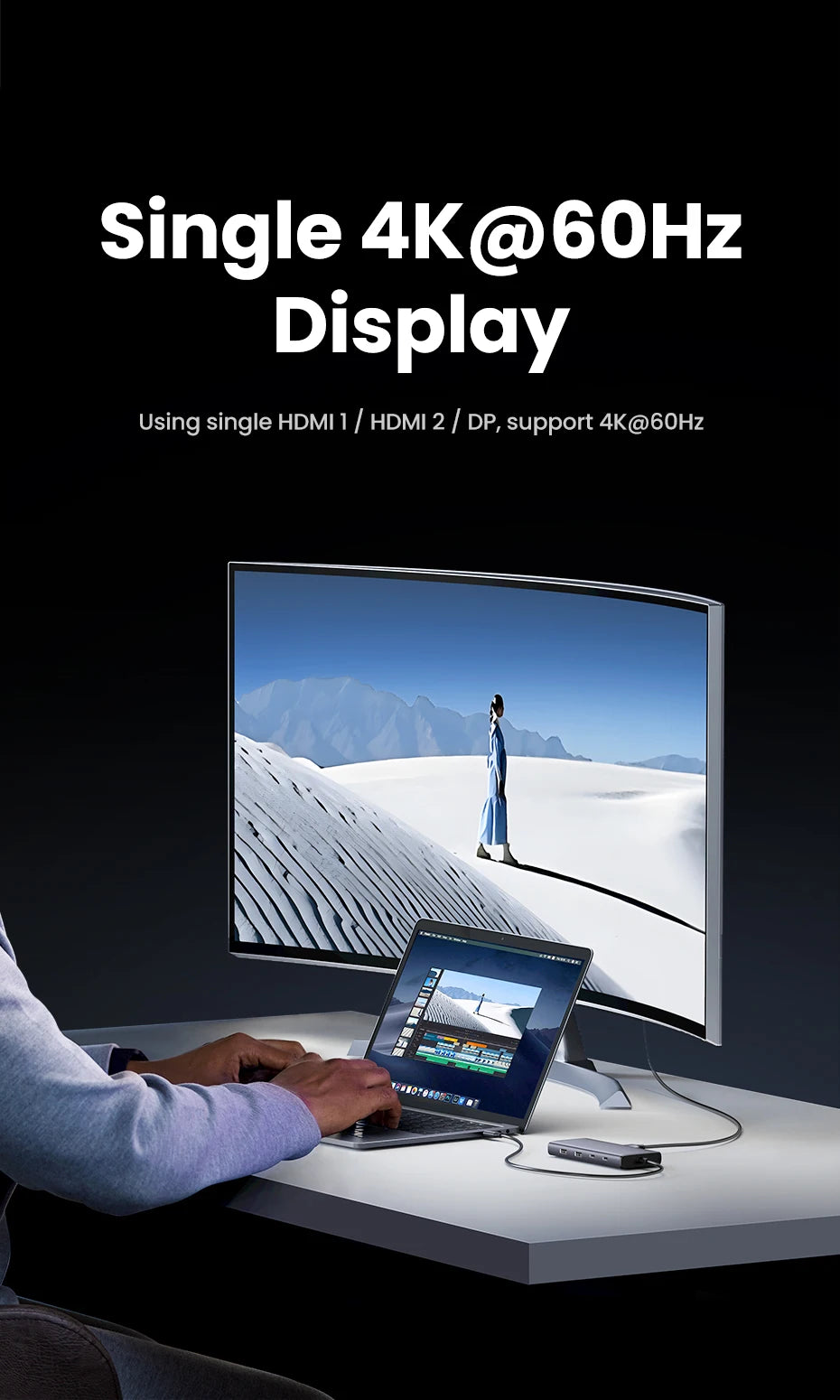

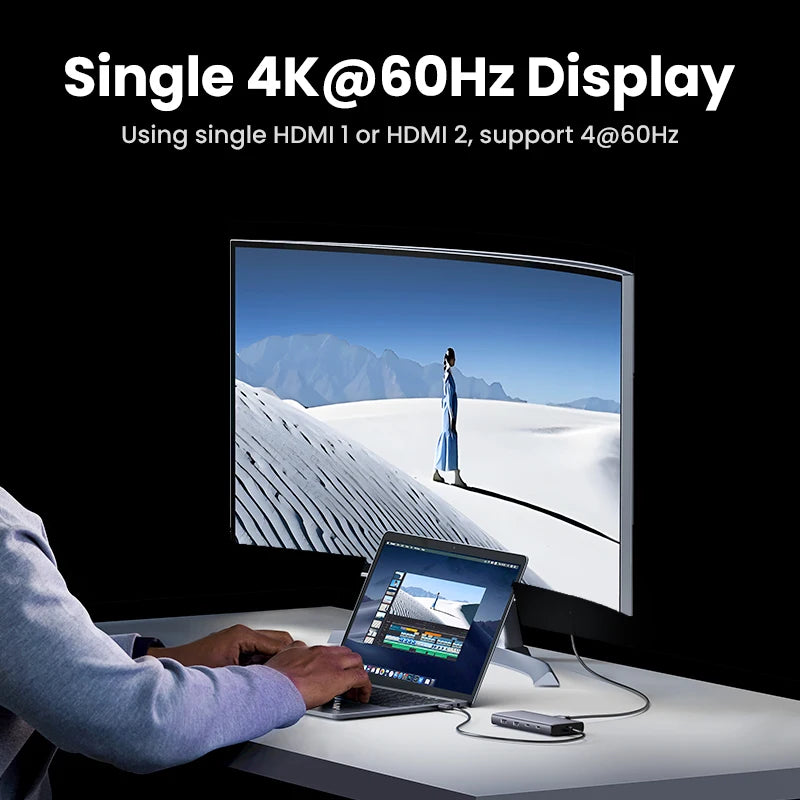

Single 4K@60Hz Display
Using single HDMI1/HDMI 2/DP, support 4K@60Hz

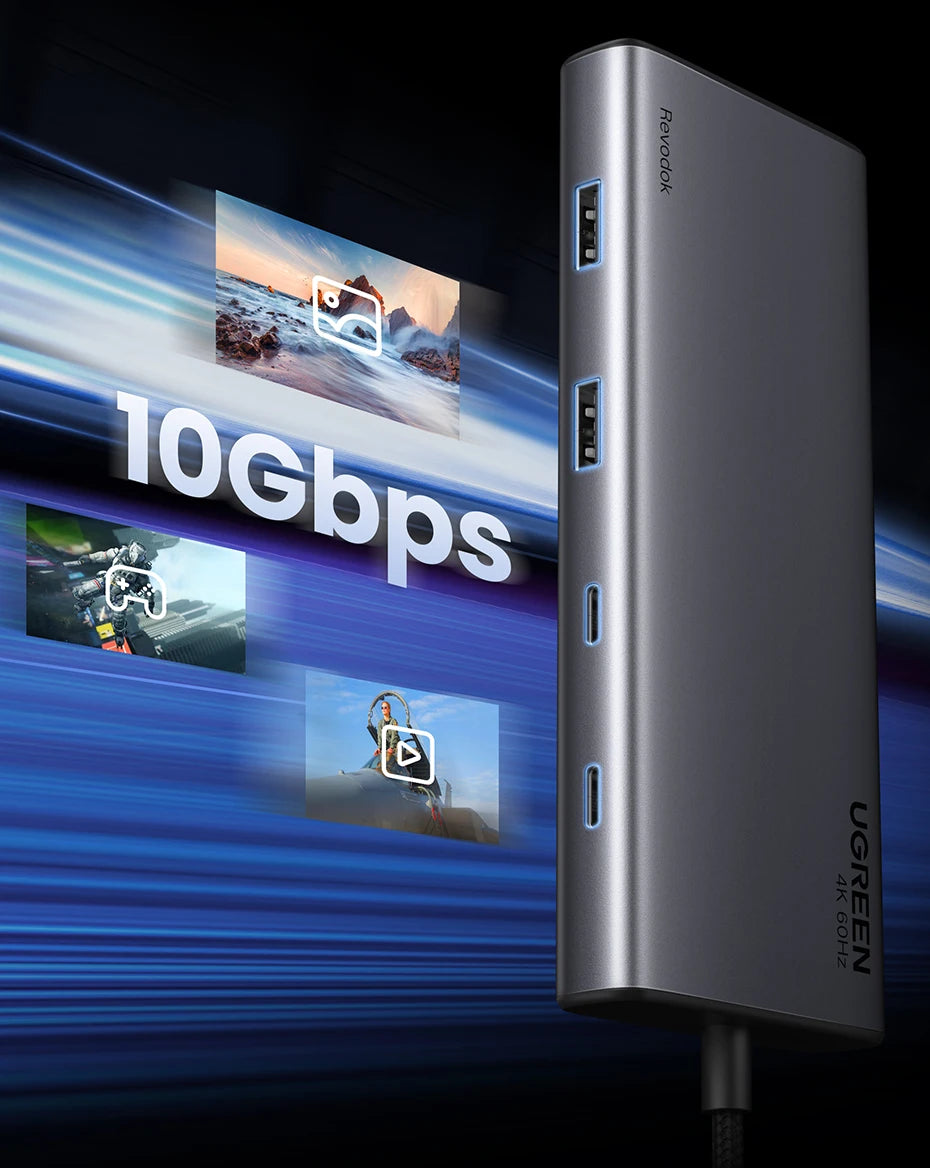

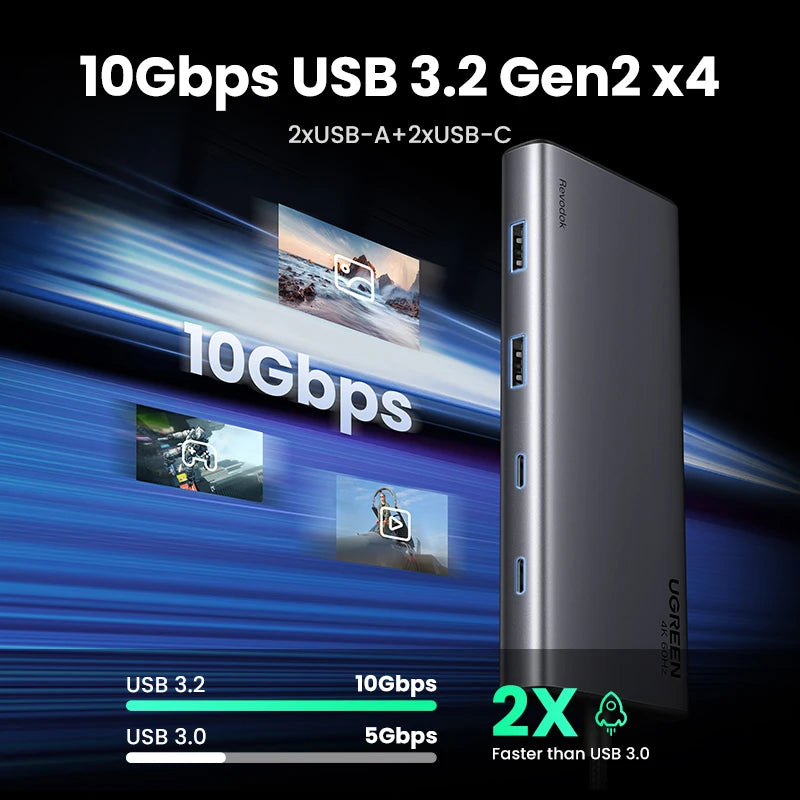

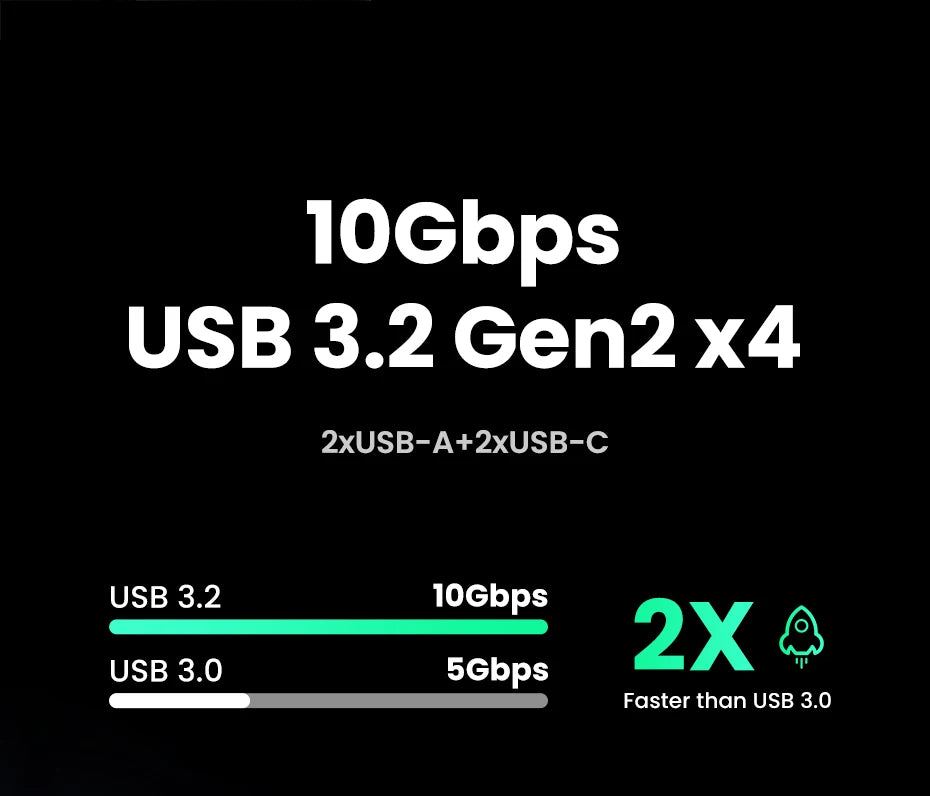

10Gbps USB 3.2 Gen2 x 4
2xUSB-A+2xUSB-C

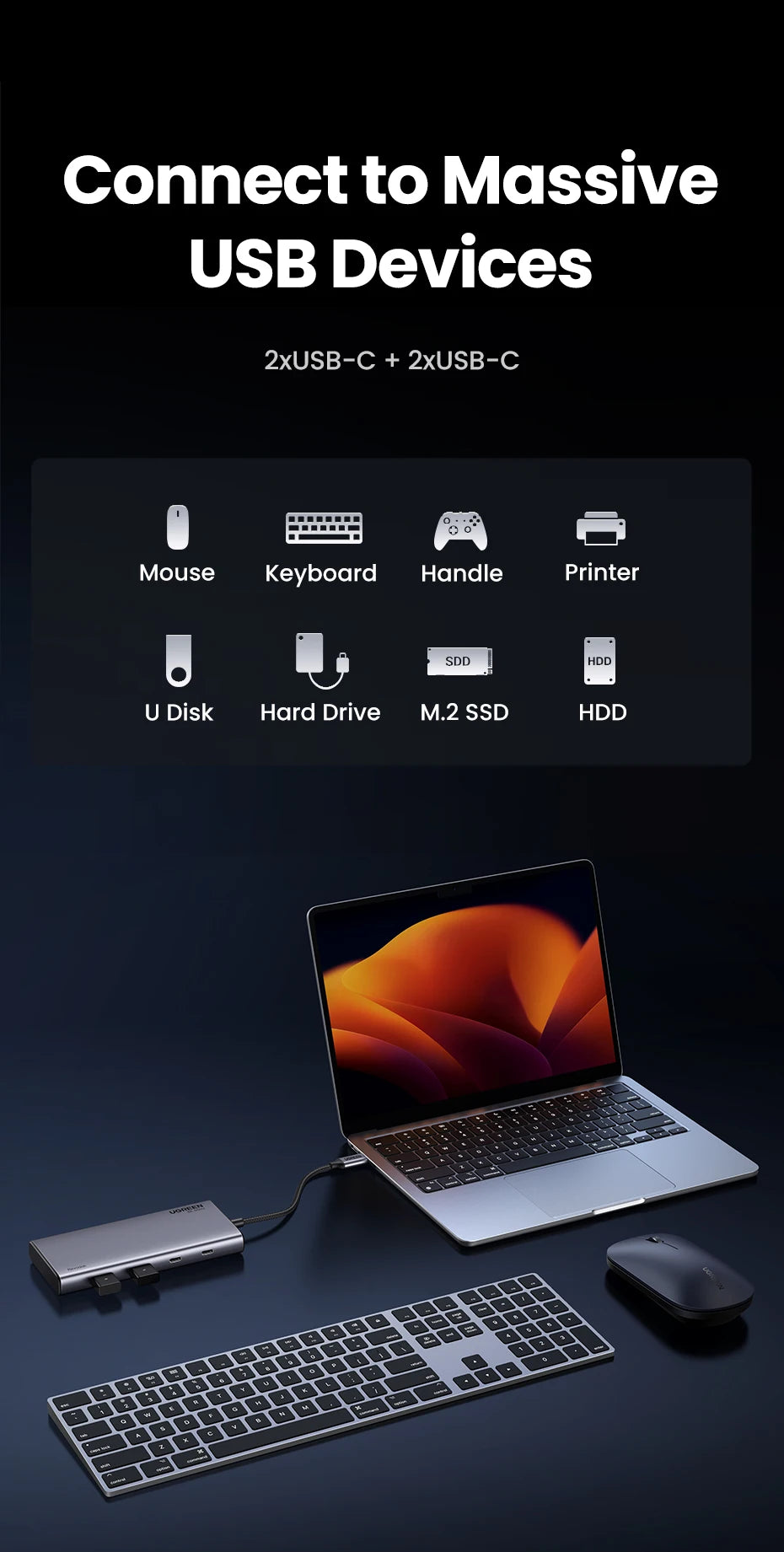

Connect to Massive USB Devices
Dynamic HDR Color Picture
Adjust the picture contrast between bright and dark places

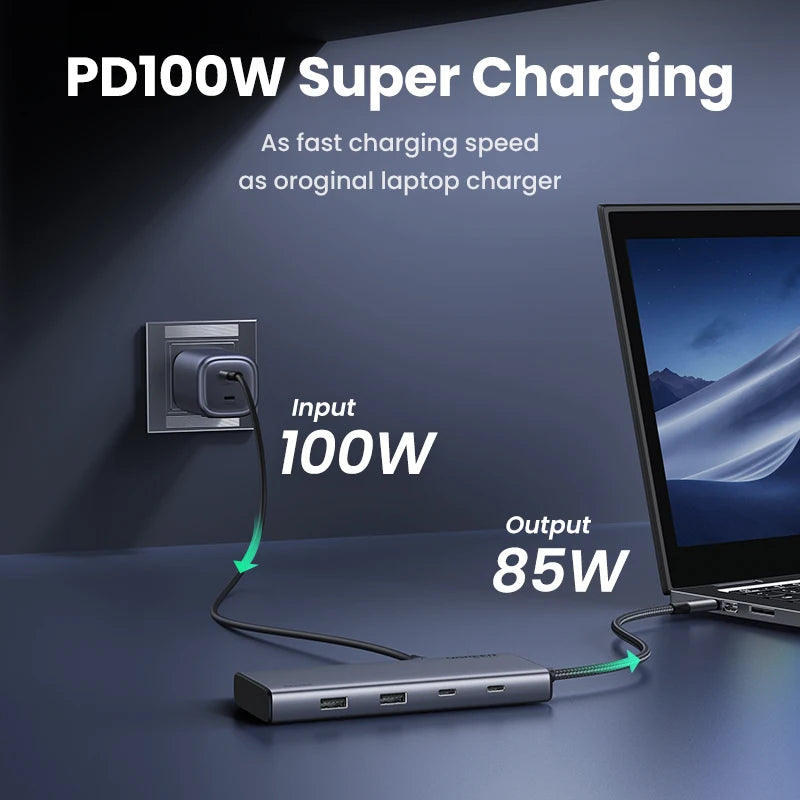

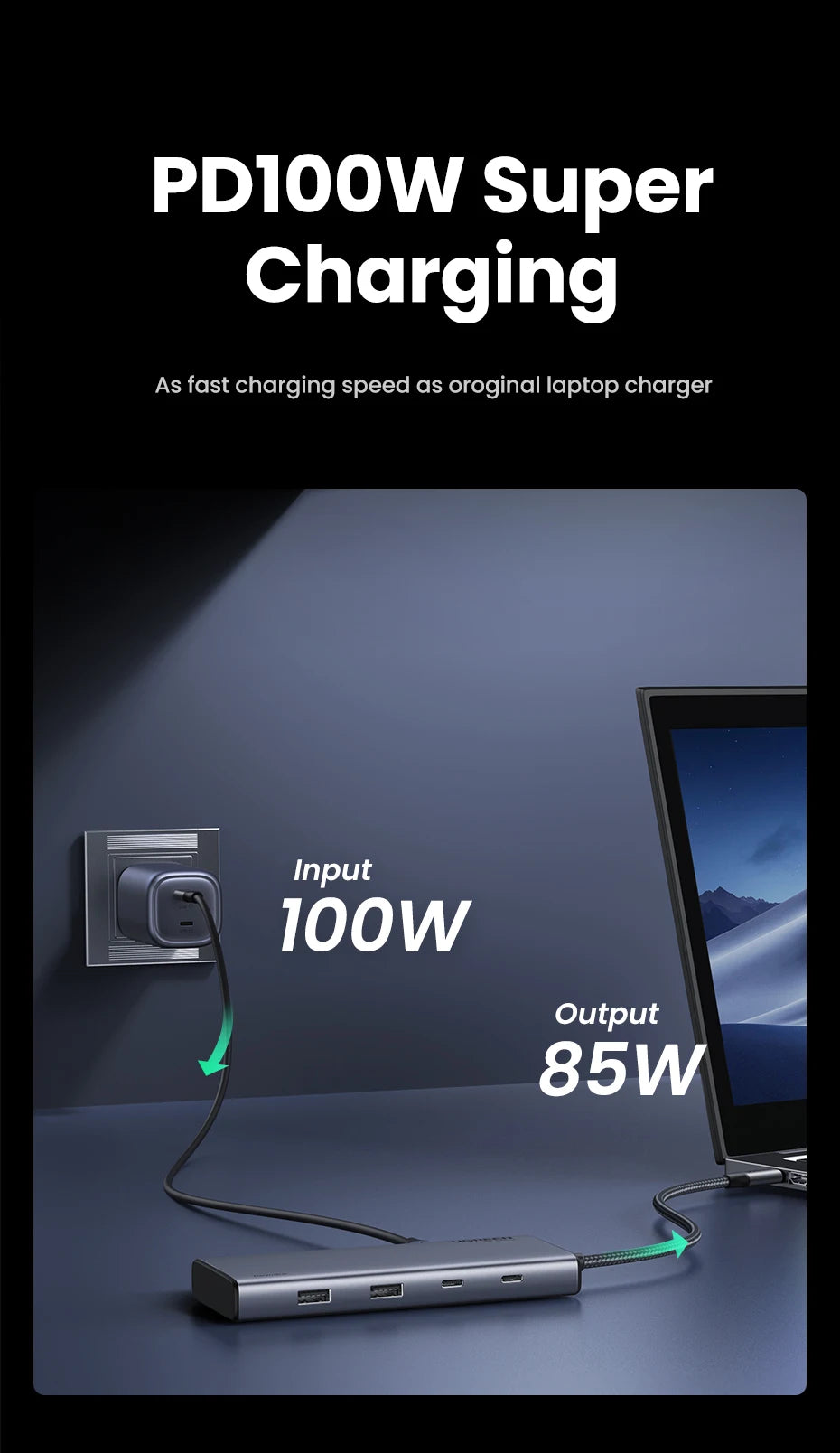

PD100W Super Charging
Supports up to 85W USB-C pass-through charging via USB-C PD port, and reserves 15W for other interface operation.

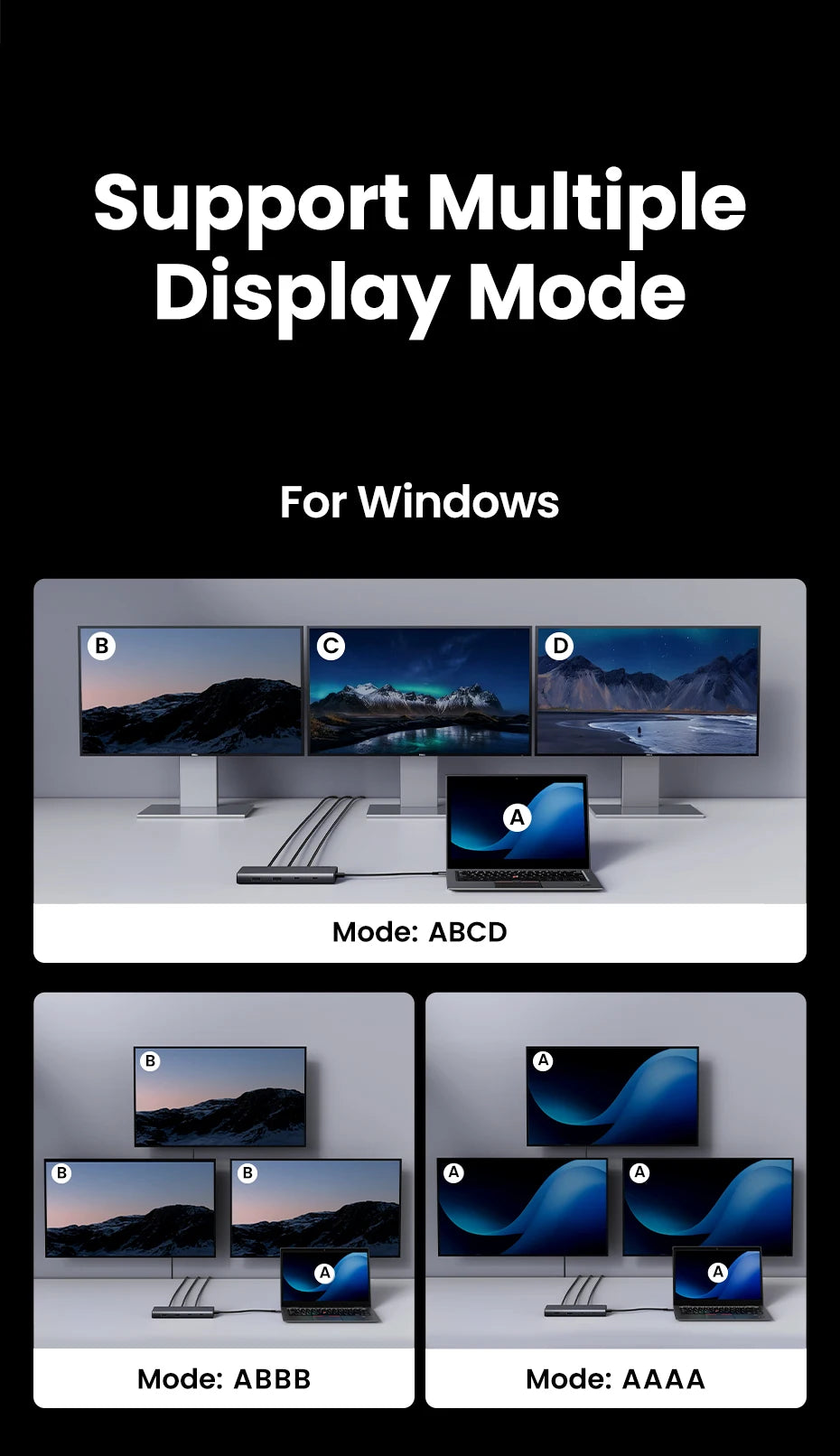

Support Multiple Display Mode
(Note: MacBooks only support mirroring mode)

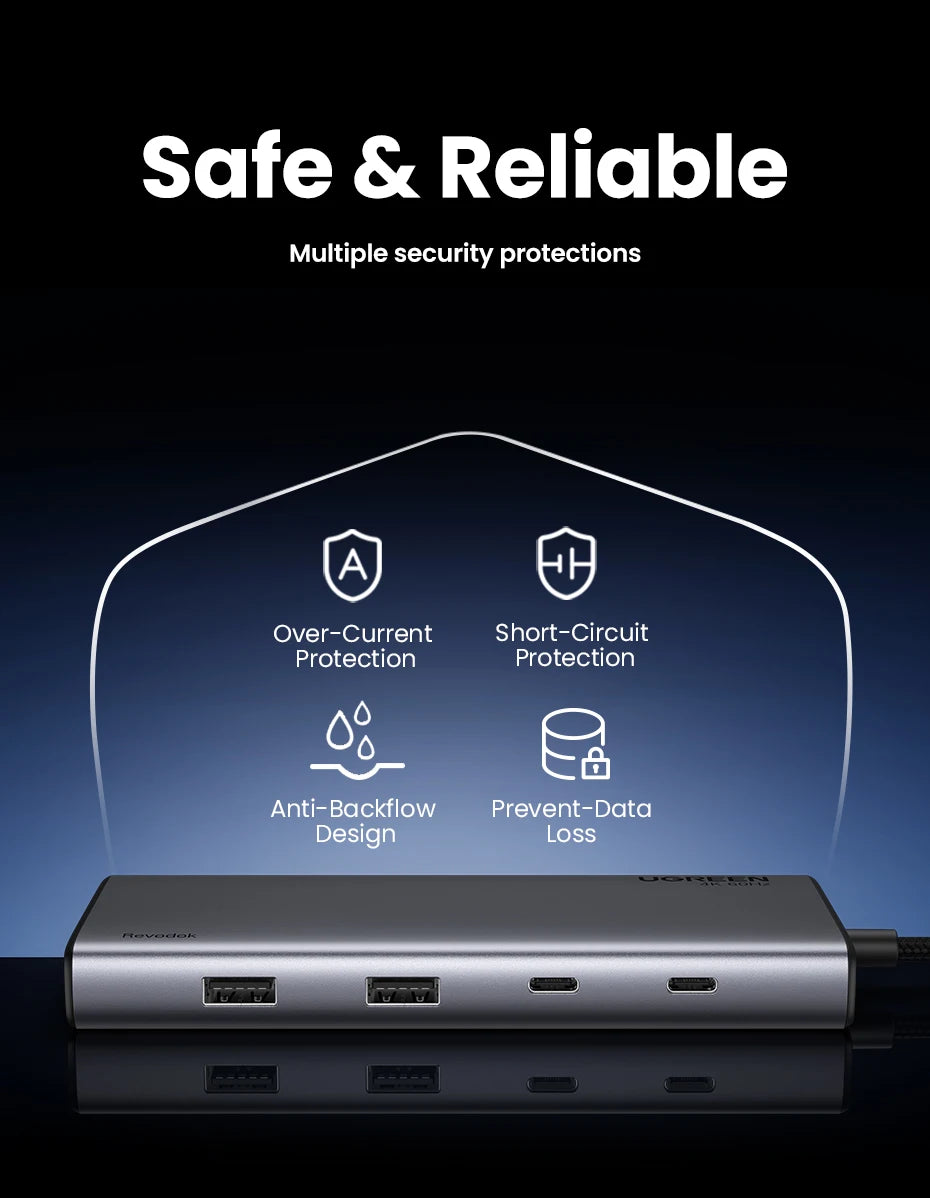

Safe & Reliable
Multiple security protections:
1. Over-Current Protection / 2. Short-Circuit Protection
